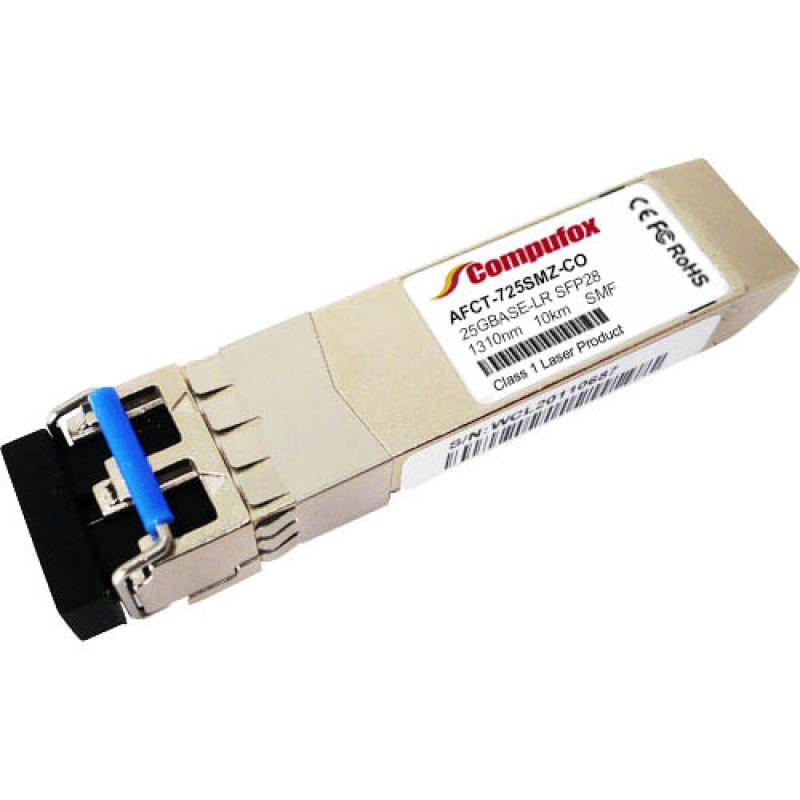

Avago AFCT-725SMZ Compatible 25GBASE-LR SFP28 Transceiver (SMF, 1310nm, 10km, LC, DOM)
$55.00
- Product Code: AFCT-725SMZ-CO
- Availability: In Stock
Available Options
Avago AFCT-725SMZ Compatible 25GBASE-LR SFP28 Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM).
Specifications
|
Form
Factor |
SFP28 |
Data
Rate |
25Gbps |
|
Wavelength |
1310nm |
Max
Cable Distance |
10km |
|
Connector |
Duplex
LC |
Media |
SMF |
|
Transmitter
Type |
DFB
1310nm |
Receiver
Type |
PIN |
|
TX
Power |
-4.5~2dBm |
Receiver
Sensitivity |
<-11dBm |
|
Powerbudget |
6.5dB |
Receiver
Overload |
2dBm |
|
Power
Consumption |
<1.2W |
Extinction
Ratio |
3.5dB |
|
DDM |
Support |
Bit
Error Ratio (BER) |
1E-12 |
|
Commercial
Temperature Range |
0 to
70°C (32 to 158°F) |
Protocols |
MSA
Compliant, CPRI, eCPRI |
