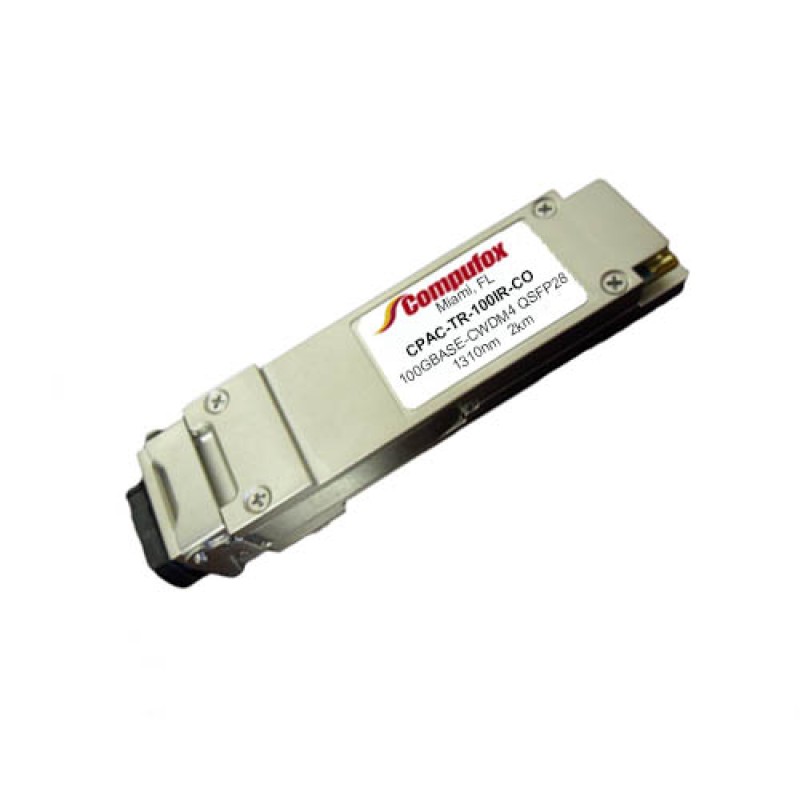

Check Point CPAC-TR-100IR Compatible 100GBASE-CWDM4 QSFP28 Transceiver (SMF, 1310nm, 2km, LC, DOM)
$175.00
- Product Code: CPAC-TR-100IR-CO
- Availability: In Stock
Available Options
Check Point CPAC-TR-100IR Compatible 100GBASE-CWDM4 QSFP28 Optical Transceiver Module (SMF, 1271nm, 1291nm, 1311nm and 1331nm, 2km, LC, DOM).
Specifications
|
Form
Factor |
QSFP28 |
Data
Rate |
100Gbps |
|
Wavelength |
1270nm
to 1330nm |
Distance
|
2km |
|
Connector |
Duplex
LC |
Media |
SMF |
|
Transmitter
Type |
4 x
CWDM DML (DFB) |
Receiver
Type |
PIN |
|
TX
Power |
-6.5~2.5dBm |
Minimum
Receiver Power |
-11.5dBm |
|
Powerbudget |
5dB |
Receiver
Overload |
2.5dBm |
|
Power
Consumption |
≤3.5W |
Extinction
Ratio |
>3.5dB |
|
DDM/DOM |
Yes |
Bit
Error Ratio (BER) |
5E-5 |
|
Commercial
Temperature Range |
0 to
70°C (32 to 158°F) |
Protocols |
IEEE
802.3ba, IEEE 802.3bm, 100G CWDM4 MSA, QSFP28 MSA, SFF-8665, SFF-8636 |
