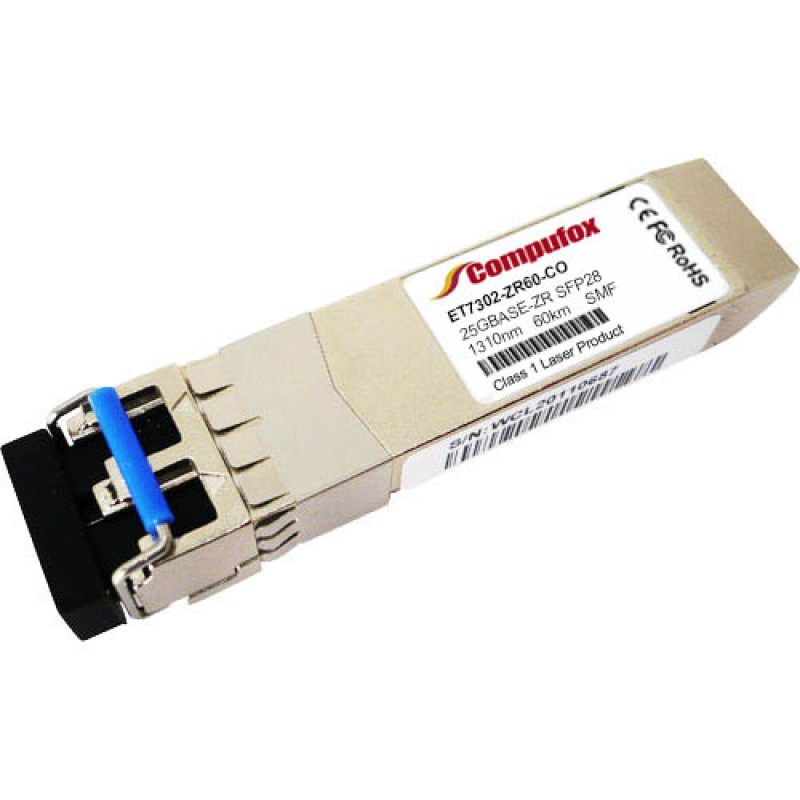

Edge-Core ET7302-ZR60 Compatible 25GBASE-ZR SFP28 Transceiver (SMF, 1310nm, 60km, LC, DOM)
$245.00
- Product Code: ET7302-ZR60-CO
- Availability: In Stock
Available Options
Edge-Core ET7302-ZR60 Compatible 25GBASE-ZR SFP28 Optical Transceiver Module (SMF, 1310nm, 60km, LC, DOM).
Specifications
|
Form
Factor |
SFP28 |
Data
Rate |
25Gbps |
|
Wavelength |
1310nm |
Max
Cable Distance |
60km |
|
Connector |
Duplex
LC |
Media |
SMF |
|
Transmitter
Type |
EML
1310nm |
Receiver
Type |
APD |
|
TX
Power |
0~6dBm |
Receiver
Sensitivity |
<-19dBm |
|
Power
Consumption |
≤1.5W |
Receiver
Overload |
-9dBm |
|
Extinction
Ratio |
4dB |
Powerbudget |
19dB |
|
DDM |
Support |
Bit
Error Ratio (BER) |
1E-12 |
|
Commercial
Temperature Range |
0 to
70°C (32 to 158°F) |
Protocols |
MSA
Compliant, CPRI, eCPRI |
