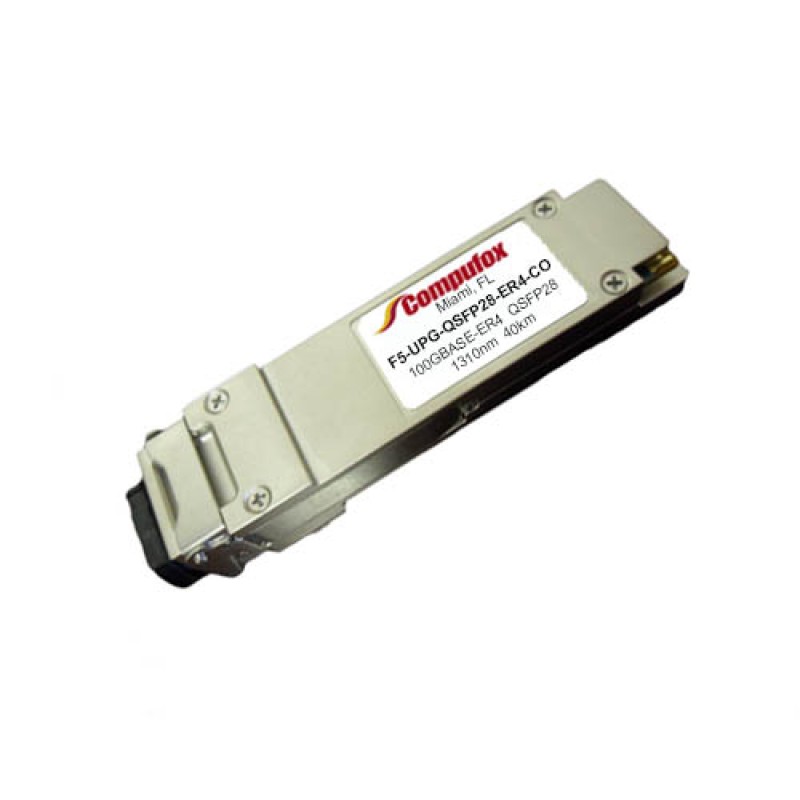

F5 Networks F5-UPG-QSFP28-ER4 Compatible 100GBase-ER4 QSFP28 Transceiver (SMF, 1310nm, 40km, LC, DOM)

$1,495.00

Compatibility (Input Switch / Router Model)

Labeling Options

Compufox Logo (Default)

Generic Label - No Logo (3 to 4 days to ship)

Your Logo - Min Qty: 20 (3 to 4 days to ship) Each Add (+$3.00)

Qty

F5 Networks F5-UPG-QSFP28-ER4 Compatible 100GBase-ER4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 40km, LC, DOM).

Specifications

Form Factor	QSFP28	Data Rate	100Gbps
Wavelength *	1310nm	Distance *	40km
Connector	Duplex LC	Media	SMF
Transmitter Type	4x EML	Receiver Type	APD
TX Power	-2.9~4.5dBm	Minimum Receiver Power	-20.9dBm
Powerbudget	18dB	Receiver Overload	-4.9dBm
Power Consumption	≤4.5W	Extinction Ratio	>4dB
DDM/DOM	Yes	Bit Error Ratio (BER)	1E-12
Commercial Temperature Range	0 to 70°C (32 to 158°F)	Protocols	QSFP28 MSA Compliant

* Requires the use of FEC on the host platform. Without FEC, the reach is 30km.

* Lane Center Wavelengths Range:

L0 1295.56nm (1294.53-1296.59nm)

L1 1300.05nm (1299.02-1301.09nm)

L2 1304.58nm (1303.54-1305.63nm)

L3 1309.14nm (1308.09-1310.09nm)
