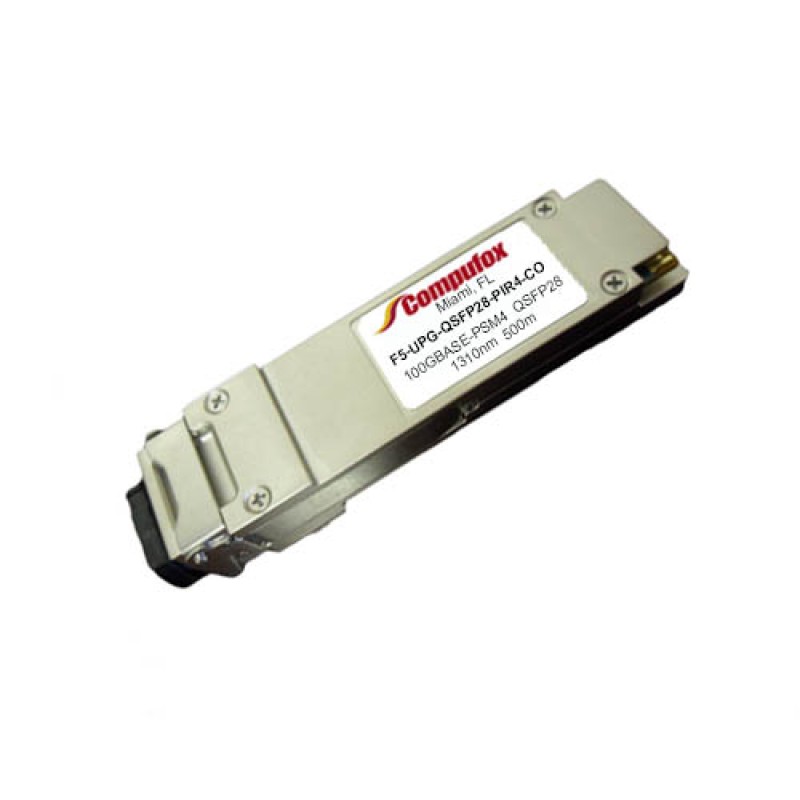

F5 Networks F5-UPG-QSFP28-PIR4 Compatible 100GBASE-PSM4 QSFP28 Transceiver (SMF, 1310nm, 500m, MTP/MPO, DOM)
$295.00
- Product Code: F5-UPG-QSFP28-PIR4-CO
- Availability: In Stock
Available Options
F5 Networks F5-UPG-QSFP28-PIR4 Compatible 100GBASE-PSM4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 500m, MTP/MPO, DOM).
Specifications
|
Form
Factor |
QSFP28 |
Data
Rate |
100Gbps |
|
Wavelength |
1310nm |
Distance |
500m |
|
Connector |
MTP/MPO-12 |
Media |
SMF |
|
Transmitter
Type |
4x
DFB |
Receiver
Type |
PIN |
|
TX
Power |
-9.4~2dBm |
Minimum
Receiver Power |
-12.66dBm |
|
Powerbudget |
3.2dB |
Receiver
Overload |
2dBm |
|
Power
Consumption |
≤3.5W |
Extinction
Ratio |
>3.5dB |
|
DDM/DOM |
Yes |
Bit
Error Ratio (BER) |
1E-12 |
|
Commercial
Temperature Range |
0 to
70°C (32 to 158°F) |
Protocols |
QSFP28
MSA Compliant |
