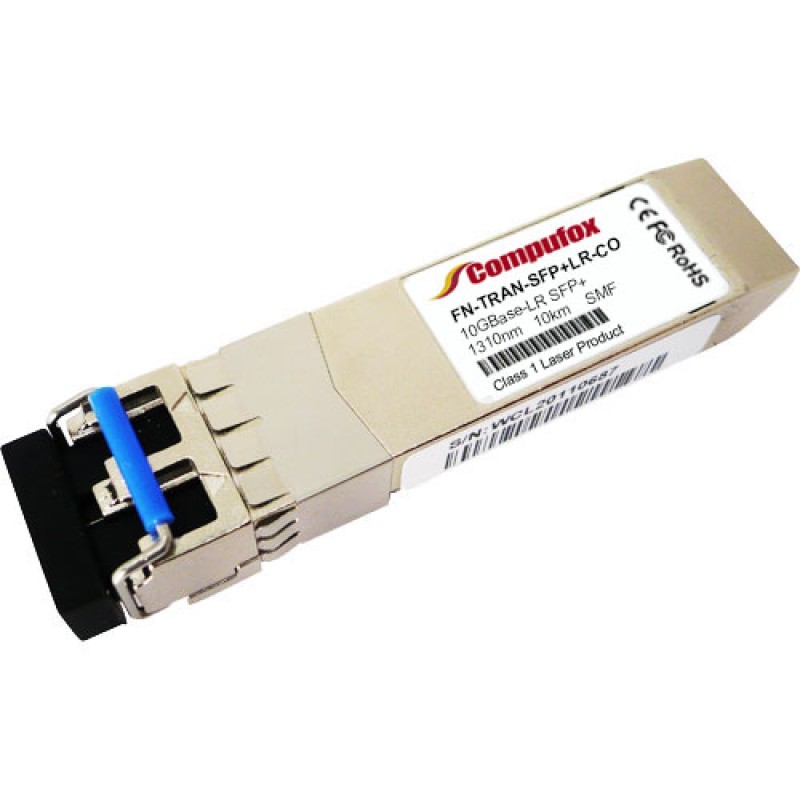

Fortinet FN-TRAN-SFP+LR Compatible 10GBASE-LR SFP+ Transceiver (SMF, 1310nm, 10Km, LC, DOM)
$25.00
- Product Code: FN-TRAN-SFP+LR-CO
- Availability: In Stock
Available Options
Fortinet FN-TRAN-SFP+LR Compatible 10GBASE-LR SFP+ Optical Transceiver Module (SMF, 1310nm, 10Km, LC, DOM).
Specifications
|
Form
Factor |
SFP+ |
Data
Rate |
10Gbps |
|
Wavelength |
1310nm |
Max
Cable Distance |
10km |
|
Connector |
Duplex
LC |
Media |
SMF |
|
Transmitter
Type |
DFB |
Receiver
Type |
PIN |
|
TX
Power |
-8.2~0.5dBm |
Receiver
Sensitivity |
<-14.4dBm |
|
Powerbudget |
6.2dB |
Receiver
Overload |
0.5dBm |
|
Power
Consumption |
≤1W |
Extinction
Ratio |
>3.5dB |
|
Commercial
Temperature Range |
0 to
70°C (32 to 158°F) |
Protocols |
IEEE
802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
