PCIe x1 AX99100 4-port DB9 RS232 Serial Adapter Card with 16950 UART

$50.00

  • Product Code: PX1-4S-9100
  • Availability: In Stock

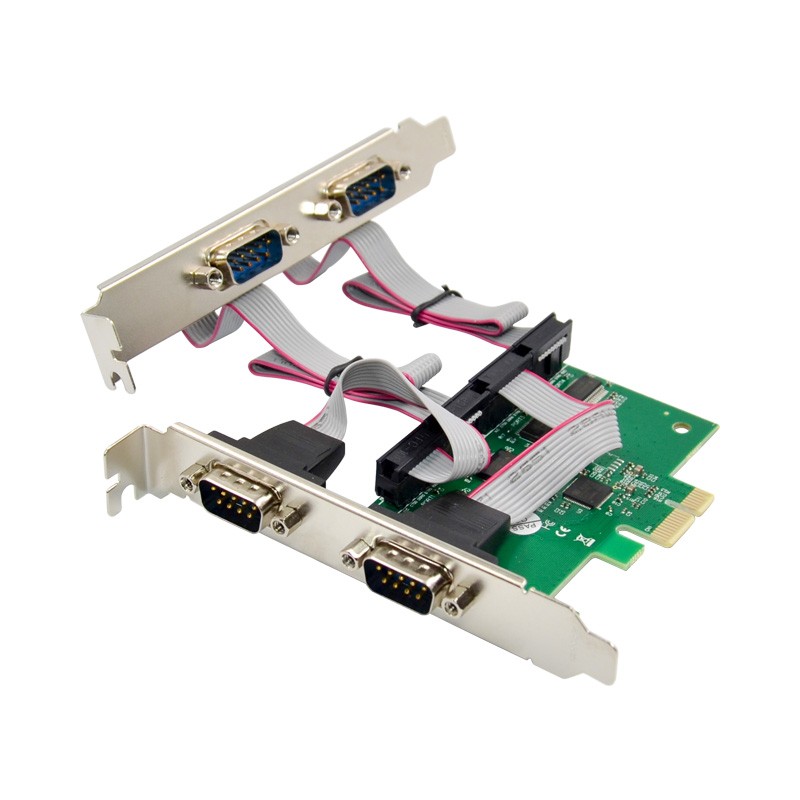

The PX1-4S-9100 4-Port Native PCI Express RS232 Serial Adapter Card with 16950 UART lets you add 4 RS232 (DB9) serial ports, using a single PCI Express expansion slot. Based on a native single-chip design, this 4-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge-chip serial cards. The RS232 Serial Adapter Card includes 4 half-height/low-profile brackets, allowing the card to be installed into almost any PC case, regardless of form factor.

Features

  • Compliant with PCI Express 2.0 Gen 1
  • Compliant with PCI Power Management 1.2
  • Single-lane (X1) PCI Express End-point Controller with PHY integrated
  • Supports both legacy and MSI Interrupts
  • Supports ASPM Power Management
  • Quad UARTs, Supports RS-232
  • Bi-directional speeds up to 25 Mbps per port Full Serial Modem Control
  • Supports Hardware, Software Flow Control
  • Supports 5, 6, 7, 8 and 9-bit Serial format
  • Supports Even, Odd, None, Space and Mark parity
  • Supports On Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port
  • Supports remote wakeup and power management features
  • Serial Port transceiver shutdown support
  • Supports Slow IrDA mode (up to 115200bps) on all Serial Ports
  • Supports multi-drop application for 9-bit mode
  • Provides RS-232 serial ports with +5 or +12 VDC power output via COM 1st or 9th pin
  • Supports DMA burst transfer
  • Support special baud rate (option)

Specifications

  • Chipset: ASIX99100
  • Bus Connector: PCI Express 2.0 x1
  • Ports: 4 * 9-pin RS-232, Male
  • Baud Rate: Up to 115.2 Kbps
  • FIFO: 256 Bytes
  • UART: 16C550
  • Function
    • Supports DMA burst transfer
    • Supports remote wakeup and power management features
    • Bi-directional speeds up to 25 Mbps per port Full Serial Modem Control

OS Compatibility

  • Windows® DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10
  • Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
  • Mac OS® 10.4 to 10.10
  • Linux 3.5.x to 4.11.x

Environmental Conditions

  • Operating temperature: 32 to 140 degrees F
  • Storage temperature: 14 to 158 degrees F
  • Relative humidity: 5% to 90% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS

Package Contents

  • 1 * AX99100 Quad-Serial Port / RS-232 PCIe Card
  • 1 * Driver CD
  • 1 * Installation guide
  • 2 * Low profile bracket
