PCIe x1 to PCI Adapter Card with PEX8112 Chipset

$24.00

  • Product Code: ADP-PX1-PCI-8112
  • Availability: In Stock

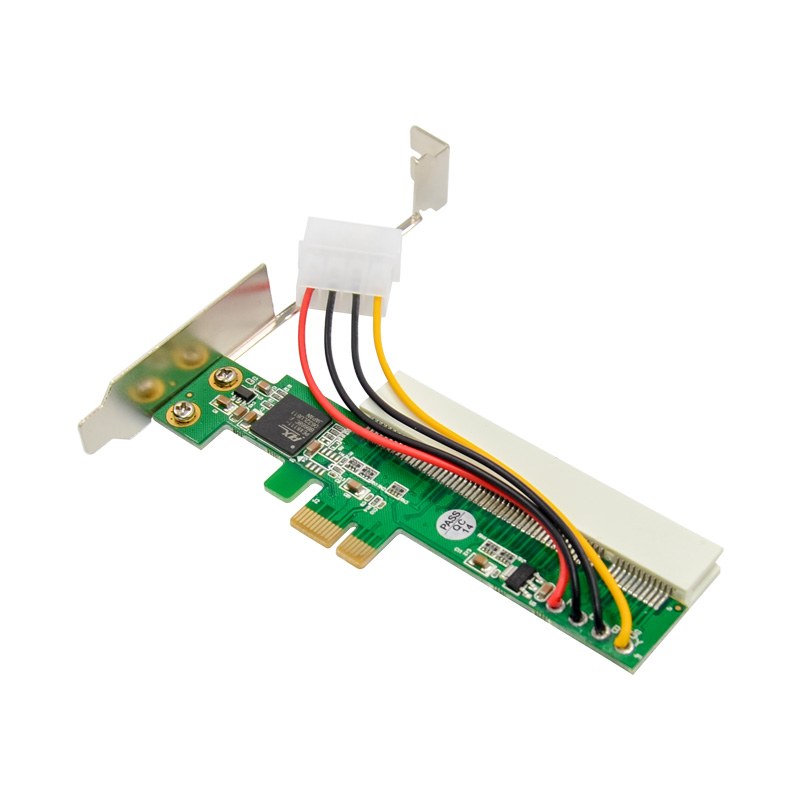

This PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express Specification 1.0a and PCI Specification 2.2, the adapter card connects through a PCIe 1x slot to provide a low profile PCI slot in its place.

A versatile solution, the adapter card converts PCIe to PCI or PCI-X; a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V). The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCIe capable systems.

Features

  • Converts a PCI Express x1 slot into a regular PCI slot - use legacy PCI devices on your PC
  • Easy Plug and Play Installation
  • Provide 4 pin power connector (uses standard 12V and 5V drive power plug )
  • PCI Express 1 Lane Port (1 virtual channel), 2.5Gbps per direction
  • Supports PCI 32 bit 33MHz bus one slot
  • PCI Express Specification Version 1.0 Compliant
  • PCI Specification Version 2.3 Compliant
  • Supports PCI slot 3.3V/1A, 3.3V/100mA, 5V/5A and 12V/500mA
  • OS support: Windows 2000/NT/2003/ XP/Vista/2008/Win7, Linux
  • No driver is required

Specifications

  • Chipset: PEX8112-AA66
  • Bus Interface: PCI Express x1
  • Connectors: PCI v.2.3:  32bits, up to 33MHz
  • Power: PCI slot 3.3V/1A, 3.3V/100mA, 5V/5A and 12V/500mA
  • System Supported: Windows 8.1/Win 8/Win 7/Vista/XP/Server 2003/2000/NT/ Dos/ Linux
