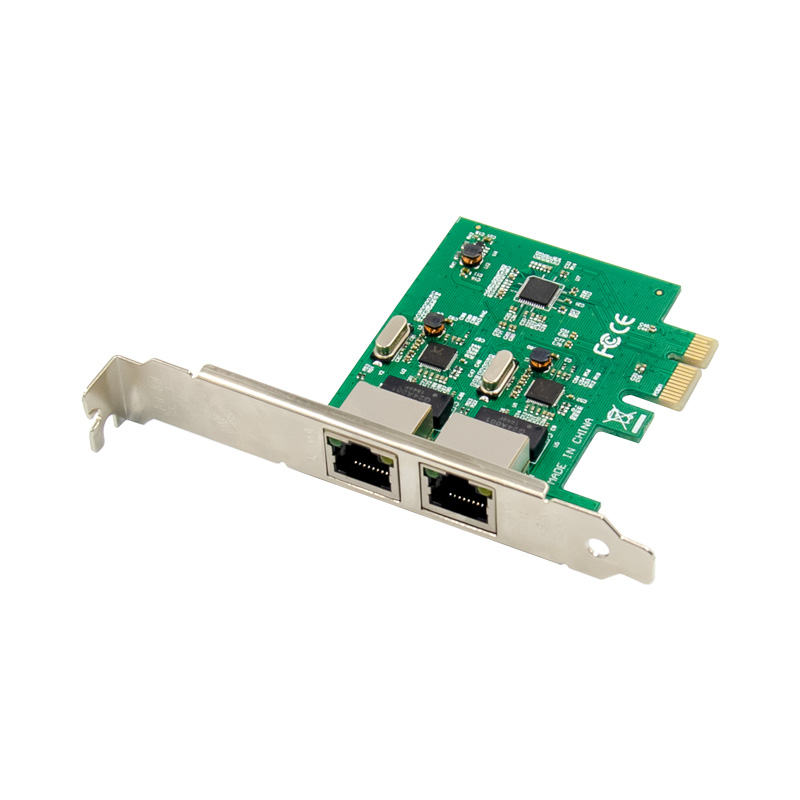

PCIe x1 2-port RJ45 1GbE Gigabit Ethernet Network Interface Card

$15.00

  • Product Code: PX1-GE-2T-8111F
  • Availability: In Stock

PX1-GE-2T-8111F is a PCI Express x1 Gigabit Ethernet desktop network adapter based on RTL8111F chipset. The Gigabit adapter adopts a compact design and does not reduce the performance of the NIC. The adapter adopts Ethernet power management technologies such as Energy Efficient Ethernet and DMA Merge. It has 4 transmit and 4 receive queues, error correction memory protection and other technologies to improve the reliability of data transmission. Manage latency data packets efficiently by combining parallel and pipe-lined logical architectures. The adapter has high-performance network data transmission on the machine bus architecture, compatible with Ethernet and fast Ethernet to greatly reduce customer deployment and training costs.

Features

  • Complies with PCI Express Revision 1.1
  • PCI Express 1-Lane (x1) interface
  • Supports standard and low profile chassis
  • A high performance 1000BASE-T Ethernet controller card
  • Backward compatible to 10/100BASE-T networking
  • Supports jumbo frame to 9K bytes
  • 10/100/1000Mbps data rate auto negotiation operation
  • Compatible to existing CAT-5 UTP cabling
  • Fully compliant with IEEE802.3,IEEE802.3u, IEEE802.3ab
  • Supports half / full duplex mode and 802.3x Flow Control
  • Supports IEEE802.1P Layer2 Priority Encoding
  • Supports IEEE 802.1Q VLAN tagging
  • Transmit /Receive on-chip buffer support
  • Crossover Detection and Auto Correction operation
  • Supports power down/link down power saving
  • Wake-on-LAN and remote wake-up function support
  • 2 * RJ45 Gigabit LAN ports

Specifications

  • Chipset: RTL8111F + ASM1182e
  • Bus Type: PCI Express* 1.1 (2.5GT/s) x1
  • Connector: 2 * RJ45 (Copper)
  • Transmission Rate: 10/100/1000 Mbps
  • Cabling
    • 1000Base-T Cat 5E, Cat6 or higher: up to 100m
    • 100Base-Tx Cat5, Cat5E, Cat6 or higher: up to 100m
    • 10Base-T Category 3, 4, 5, 5E, 6 or higher: up to 100m
  • IEEE Standard / Network topology
    • 1000BASE-T Gigabit Ethernet, IEEE 802.3az - Energy Efficient Ethernet (EEE)
    • IEEE 802.3z, IEEE 802.3, IEEE 802.1Q VLANs, IEEE 802.3x, IEEE 1588
  • System Requirements
    • Windows XP / ME / Server 2000 / Server 2003 / Server 2008 /
    • Vista / Win 7 / Win 8 / Win 8.1 / Win 10 32&64Bit
  • Applicable fields: Home or office use
