PCIe x1 4-port RJ45 Intel NHI350AM4 Chipset Gigabit Ethernet Network Interface Card

$65.00

  • Product Code: PX1-GE-4T-I350
  • Availability: In Stock

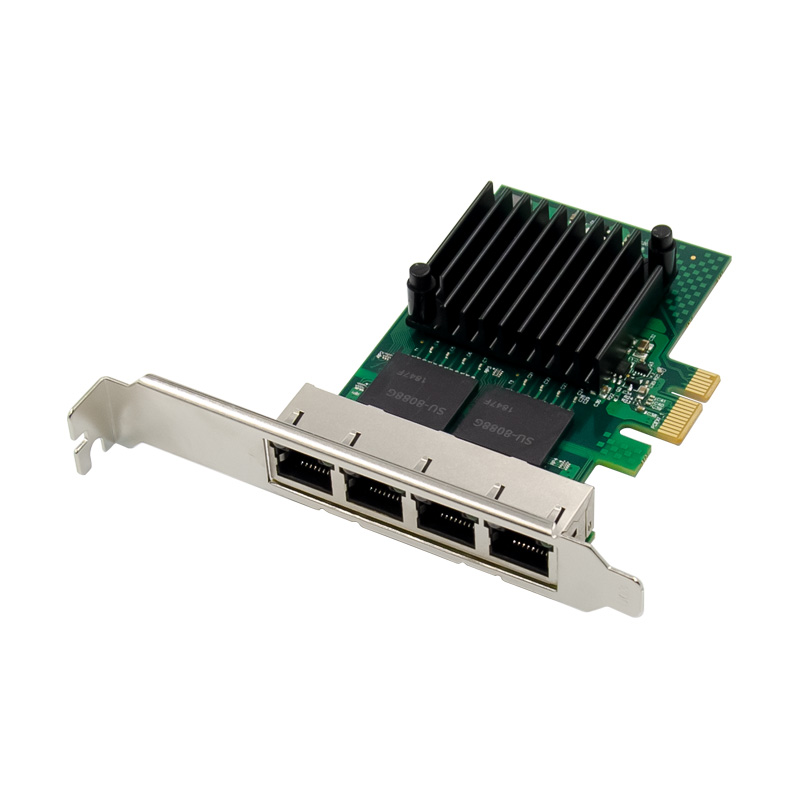

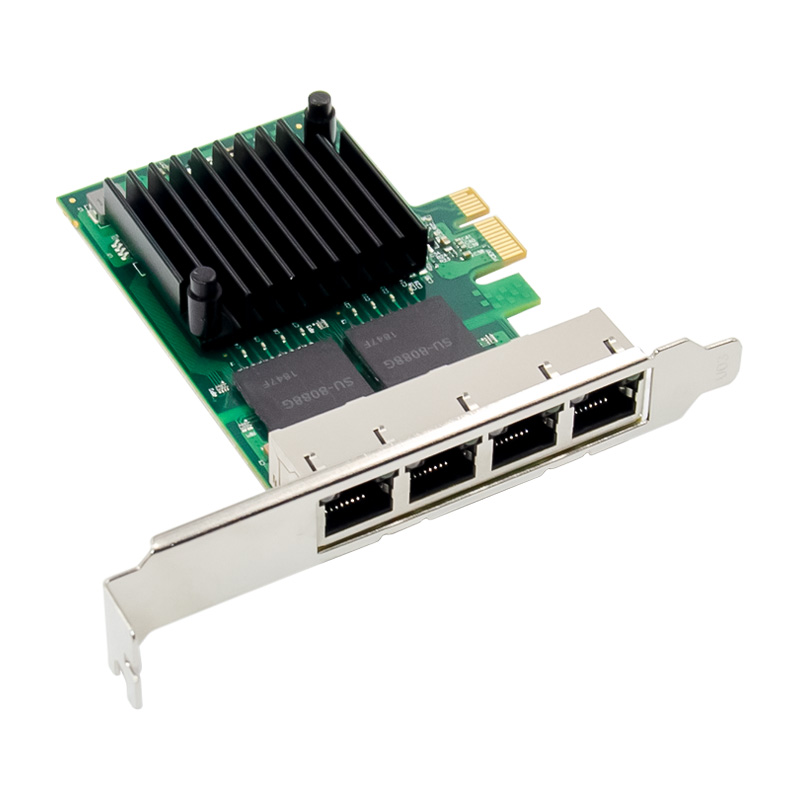

PX1-GE-4T-I350 is a PCIe x1 1Gbps Quad RJ45 Port Ethernet Copper Desktop Adapter based on Intel I350 chipset. It is compatible with PCIe x4, x8 and x16 slot. The adapter is mainly used in Industrial PCs and it's performance has been optimized while being designed, which makes system I/O no longer be the bottleneck in the application of high-end network. The adapter can be grouped up together through it's four ports to expand network bandwidth and ensure network performance. It can also detect automatically and combine the communication route from the faulty port with others to achieve high-performance communications incessantly.

Features

  • Halogen-free dual Gigabit Ethernet adapters with copper interface options
  • Innovative power management features including Energy Efficient Ethernet (EEE) and DMA Coalescing for increased efficiency and reduced power consumption
  • Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports
  • Scalable iSCSI performance delivering cost-effective SAN connectivity
  • High-performing bridgeless design supporting PCI Express* Gen 2.1 5GT/s
  • Reliable and proven Gigabit Ethernet technology

Specifications

  • Chipset: Intel I350AM4
  • Bus Type: PCI Express* 2.1 (5GT/s)  x1
  • Connector: 4 * RJ-45 (Copper)
  • Transmission Rate: 10/100/1000 Mbps
  • Cabling
    • Category-3 or higher for 10BASE-T operation
    • Category-5 or higher for 100BASE-TX operation
    • Category-5e or higher for 1000BASE-T operation
  • Function: IPMI pass-through via SMBus or NC-SI, iSCSI boot, WoL, PXE remote boot, VLAN filtering
  • IEEE Standard / Network topology
    • IEEE 802.3/10BASE-T, 100BASE-TX, 1000BASE-T
    • IEEE 802.3z, IEEE 802.3, IEEE 802.1Q VLANs, IEEE 802.3x, IEEE 1588, IEEE 802.3az - Energy Efficient Ethernet (EEE)
  • System Requirements
    • Windows Server 2003 / Server 2008 / R2 / Server 2012 / R2
    • Win 7 / Win 8 / Win 8.1 / Win 10 32&64Bit
    • DOS, Linux, FreeBSD, Novell, UnixWare / OpenUnix 8

Hardware

  • Power: 5.0 W
  • Certifications: FCC, CE, RoHS
  • Metal Bracket: Full-height end bracket / Low-profile end bracket
  • LED Indicators: Not illuminated=10 Mb/s; green=100 Mb/s; amber=1 Gb/s

Environmental

  • Operating Temperature: 0 ~ 55 ℃ (32 ~ 131℉)
  • Storage Temperature: -40 ~ 70 ℃ (-40 ~ 158 ℉)
  • Storage Humidity: 90% Non-condensing relative humidity at 35 ℃
