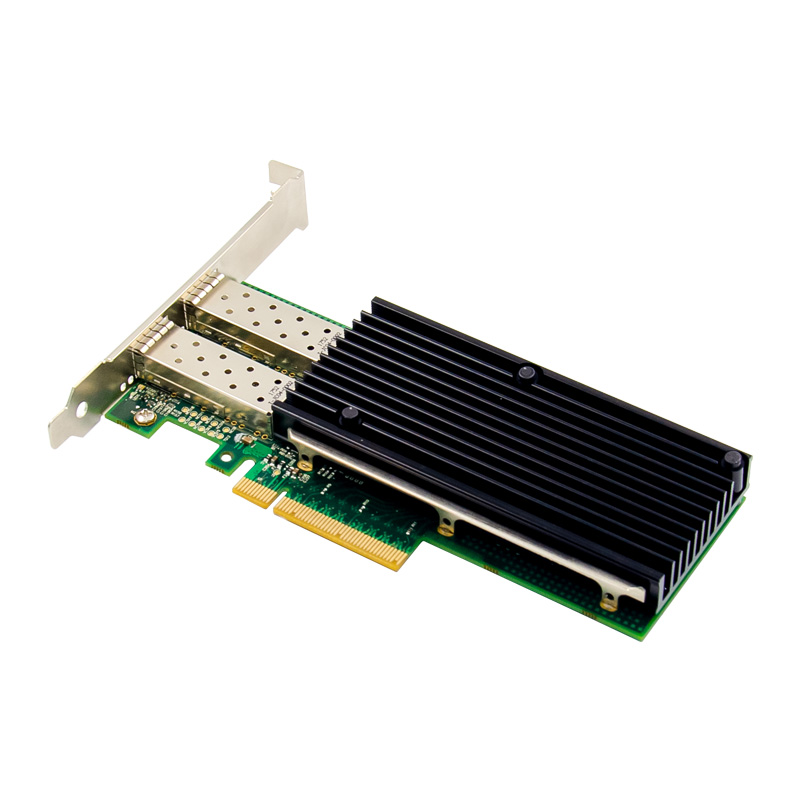

PCIe x8 Dual SFP28 Port 25GbE Network Card with Intel XXV710-AM2 Chip

$560.00

  • Product Code: PX8-25G-2S-710
  • Availability: In Stock
The Dual SFP28 Port 25 Gigabit Ethernet Network Card is with Intel Virtualization Technology for Cloud and Enterprise data centers. The Intel Ethernet Controller XXV710 is a new addition to the Intel Ethernet 700 Series supporting 1/10/25GbE, providing broad interoperability, critical performance optimizations, and increased agility for Communications, Cloud, and Enterprise IT network solutions.

Features
  • Dual-port 25GbE Fiber Server adapter
  • PCI Express* (PCIe) v3.0, x8
  • Network Virtualization offloads including VXLAN, GENEVE, NVGRE, MPLS, and VXLAN-GPE with Network Service Headers (NSH)
  • Intel® Ethernet Flow Directorfor hardware based application traffic steering
  • Dynamic Device Personalization (DDP) enables increased packet processing efficiency for NFV and Cloud deployments
  • Data Plane Development Kit (DPDK) optimized for efficient packet processing
  • Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
  • Intelligent offloads to enable high performance on servers with Intel® Xeon® processors
  • I/O virtualization innovations for maximum performance in a virtualized server
Specifications
  • Controller: Intel XXV710-AM2
  • Bus Type: PCI Express 3.0 x8, compatible with x16
  • Connector: 2 * SFP28 ports
  • Data Rate: 10000 / 25000 Mbps
  • Jumbo Frame: up to 9.5 KB
  • Network Topology
    • IEEE 802.3az Energy Efficient Ethernet, VXLAN / NVGRE, 802.1q VLAN
    • IEEE 802.1Qbb, IEEE 802.1az, IEEE 802.1Qbg, IEEE 802.1Qbh
    • SFP28 Fiber 25Gigabit Ethernet, 25Gbase-SR (850nm LAN PHY)
    • SFP28 Fiber 25Gigabit Ethernet, 25Gbase-LR (1310nm LAN PHY)
  • Advanced Features: VXLAN, NVGRE, GENEVE, VXLAN-GPE+NSH, MPLS
  • Physical Interfaces: Support PXE, Jumbo frame, iSCSI, DPDK, FCo, EWOL
  • Additional Features
    • VLAN Support
    • Enhanced Transmission Selection (draft IEEE 802.1az)
    • Jumbo Frame Support—Up to 9.5 KB (9728 Bytes)
    • Priority Flow Control (draft IEEE 802.1Qbb)
    • Data Center Bridging (DCB/DCB-X) Support; up to 8 traffic classes
  • LED Indicators: 25G: Yellow LINK on; Blue ACT-blink
  • Operating Systems
    • Server 2003 / Server 2008 / Vista / Win 7 / Win 8 / Win 10 32-64bit
    • Windows Server 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 /2016 R2
    • FreeBSD, Linux Stable Kernel, VMware ESX/ESXi
Package Contents
  • 1 * PCIe Dual 25GbE SFP28 Server Fiber NICs XXV710-AM2
  • 1 * User Manual
  • 1 * Driver CD
  • 1 * Low Profile Bracket

SPECIFICATIONS
ChipsetIntel XXV710-AM2
Bus ConnectorPCIe 3.0 x8
Ports2 * SFP28
Max Data Rate25000 Mbps
Networking ProtocolIEEE 802.3az Energy Efficient Ethernet, VXLAN / NVGRE, 802.1q VLAN, IEEE 802.1Qbb, IEEE 802.1az, IEEE 802.1Qbg, IEEE 802.1Qbh
Cabling TypeSFP28 Fiber 25Gigabit Ethernet, 25Gbase-SR (850nm LAN PHY), SFP28 Fiber 25Gigabit Ethernet, 25Gbase-LR (1310nm LAN PHY)
OS CompatibilityServer 2003 / Server 2008 / Vista / Win 7 / Win 8 / Win 10 32-64bit / Windows Server 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 /2016 R2 FreeBSD, Linux Stable Kernel, VMware ESX/ESXi
