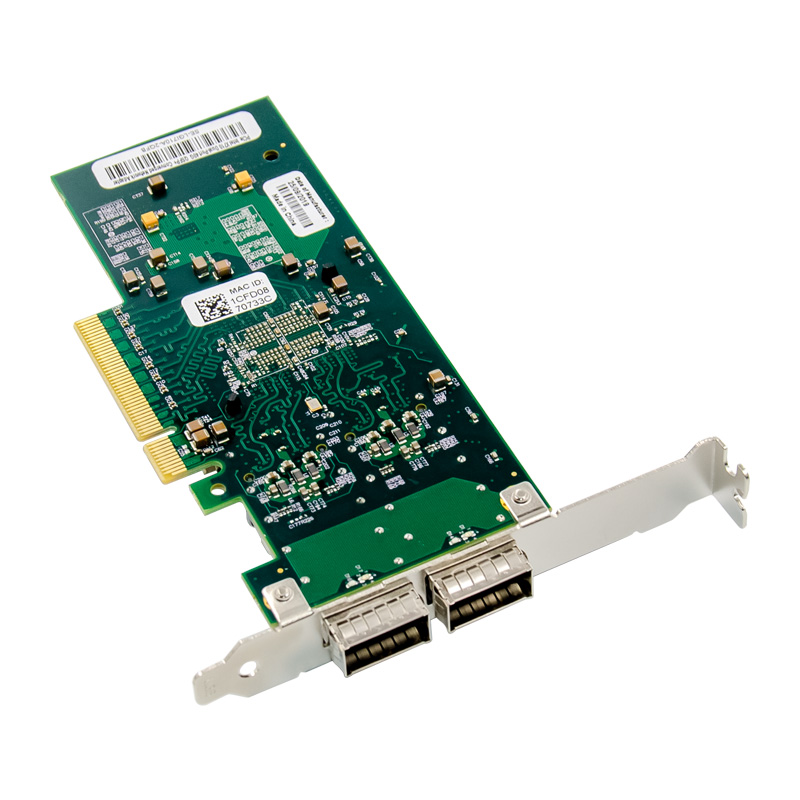

PCIe x8 Dual QSFP+ Port 40GbE Network Card with Intel XL710 Chip

$375.00

  • Product Code: PX8-40G-2Q-710
  • Availability: In Stock
Get fast, high-bandwidth connectivity with this dual-port QSFP+ Network Interface Card. It adds two open QSFP+ slots to your server or workstation. The 40G NIC features an Intel® controller and provides redundant network links with reliable performance. It’s ideal for high-demand database servers, virtualized servers and agile data centers that require infrastructure updates with no downtime.

This dual port QSFP+ server NIC card lets you take advantage of the speed and stability of a 40 Gigabit network, with data transfers of up to 40Gbps. With two QSFP+ ports, the PCIe NIC helps to prevent network downtime by adding fault-tolerant connections using two modules, to provide high-bandwidth network links to your mission-critical servers or workstations.

With its open QSFP+ slots, the network interface card supports QSFP+ transceiver modules and is compatible with multimode and single-mode fiber, providing a scalable networking solution. he 40G NIC uses an Intel XL710 chipset providing reliable connectivity and convergent network features. It offers many advanced features including Intel Virtualization Technology for Connectivity.

Features
  • PCI Express* (PCIe) v3.0, X8
  • Supports 2 x 40GbE configurations
  • Exceptional low-power controllers
  • Network Virtualization offloads including VXLAN, GENEVE, NVGRE, MPLS, and VXLAN-GPE with NetworkService Headers (NSH)
  • Intel® Ethernet Flow Director for hardware based application traffic steering
  • Dynamic Device Personalization (DDP) enables increased packet processing efficiency for NFV and Cloud deployments
  • Data Plane Development Kit (DPDK) optimized for efficient packet processing
  • Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
  • Intelligent offloads to enable high performance on servers with Intel® Xeon® processors
  • I/O virtualization innovations for maximum performance in a virtualized server
Specifications
  • Chipset: Intel XL710
  • Bus Type: PCI Express v3.0 (8 GT/s), compatible with x16
  • Connector: 2 * QSFP+ slots
  • Data Rate: 40000 Mbps
  • Jumbo Frame: up to 9.5 KB
  • Network Topology
    • IEEE 802.3az Energy Efficient Ethernet, VXLAN / NVGRE, 802.1q VLAN
    • IEEE 802.1Qbb, IEEE 802.1az, IEEE 802.1Qbg, IEEE 802.1Qbh
    • QSFP+ Fiber 40Gigabit Ethernet, 40Gbase-SR4 (850nm LAN PHY)
    • QSFP+ Fiber 40Gigabit Ethernet, 40Gbase-LR4 (1310nm LAN PHY)
  • Advanced Features: VXLAN, NVGRE, GENEVE, VXLAN-GPE+NSH, MPLS
  • Physical Interfaces: Support PXE, Jumbo frame, iSCSI, DPDK, FCo, EWOL
  • Additional Features
    • VLAN Support
    • Enhanced Transmission Selection (draft IEEE 802.1az)
    • Jumbo Frame Support—Up to 9.5 KB (9728 Bytes)
    • Priority Flow Control (draft IEEE 802.1Qbb)
    • Data Center Bridging (DCB/DCB-X) Support; up to 8 traffic classes
  • LED Indicators: 40G: Yellow LINK on; Blue ACT-blink
  • Operating Systems
    • Server 2003 / Server 2008 / Vista / Win 7 / Win 8 / Win 10 32-64bit
    • Windows Server 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 /2016 R2
    • FreeBSD, Linux Stable Kernel, VMware ESX/ESXi
Package Contents
  • 1 * PCIE Dual 40GbE QSFP+ Server Fiber NICs XL710
  • 1 * User's Manual
  • 1 * Driver CD
  • 1 * Low profile bracket

SPECIFICATIONS
ChipsetIntel - XL710-BM2
Bus ConnectorPCIe 3.0 x16
Ports2 * QSFP+ slots
Max Data Rate40Gbps
Networking ProtocolIEEE 802.3az Energy Efficient Ethernet, VXLAN / NVGRE, 802.1q VLAN, IEEE 802.1Qbb, IEEE 802.1az, IEEE 802.1Qbg, IEEE 802.1Qbh
Cabling Type40Gbase SR4 / 40Gbase-LR4, 40G direct connection cable
OS CompatibilityServer 2003 / Server 2008 / Vista / Win 7 / Win 8 / Win 10 32-64bit / Windows Server 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 /2016 R2, FreeBSD, Linux Stable Kernel, VMware ESX/ESXi
