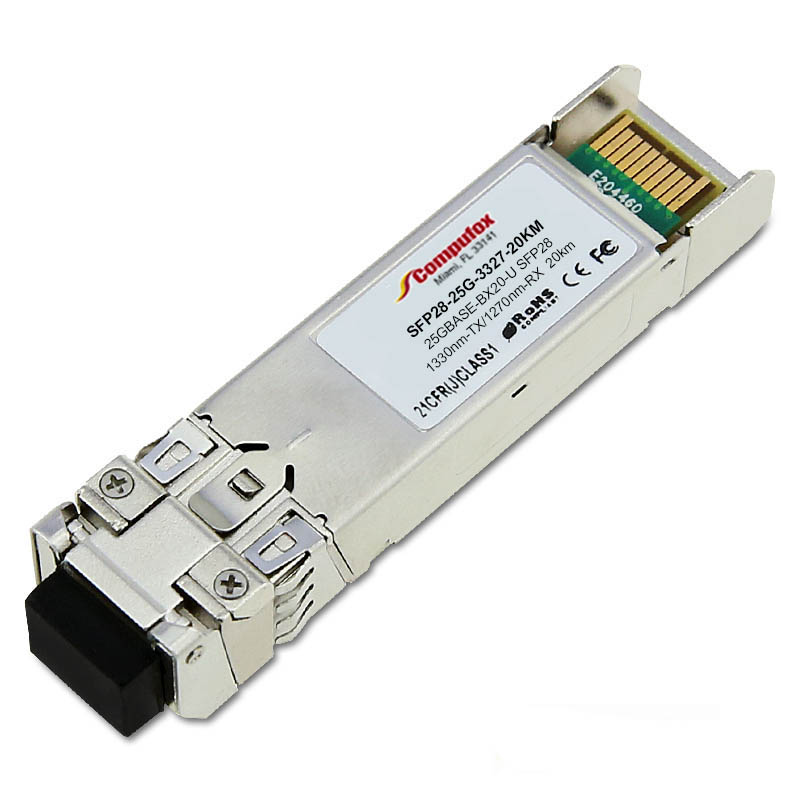

SFP28-25G-3327-20KM - 25GBase-BX SFP28 Transceiver (SMF, Tx1330nm/Rx1270nm, 20km, Simplex LC, DOM)

$89.00

  • Product Code: SFP28-25G-3327-20KM
  • Availability: In Stock

Available Options

25GBASE-BX20-D SFP28 Optical Transceiver Module (SMF, 1330nm-TX/1270nm-RX, 20km, LC, DOM).


Specifications

Form Factor

SFP28

Data Rate

25Gbps

Wavelength

1330nm-TX/1270nm-RX

Max Cable Distance

20km

Connector

Simplex LC

Media

SMF

Transmitter Type

DFB BiDi

Receiver Type

PIN

TX Power

0~6dBm

Receiver Sensitivity

<-14dBm

Powerbudget

14dB

Receiver Overload

2.5dB

Power Consumption

≤1.2W

Extinction Ratio

3.5dB

DDM/DOM

Supported

Bit Error Ratio (BER)

1E-12

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Protocols

eCPRI, SFF-8472, SFF-8432, SFF-8431
