PCIe x1 4-port USB 3.0 Type-A USB Host Card

$9.50

  • Product Code: PX1-U30-4A-201V
  • Availability: In Stock

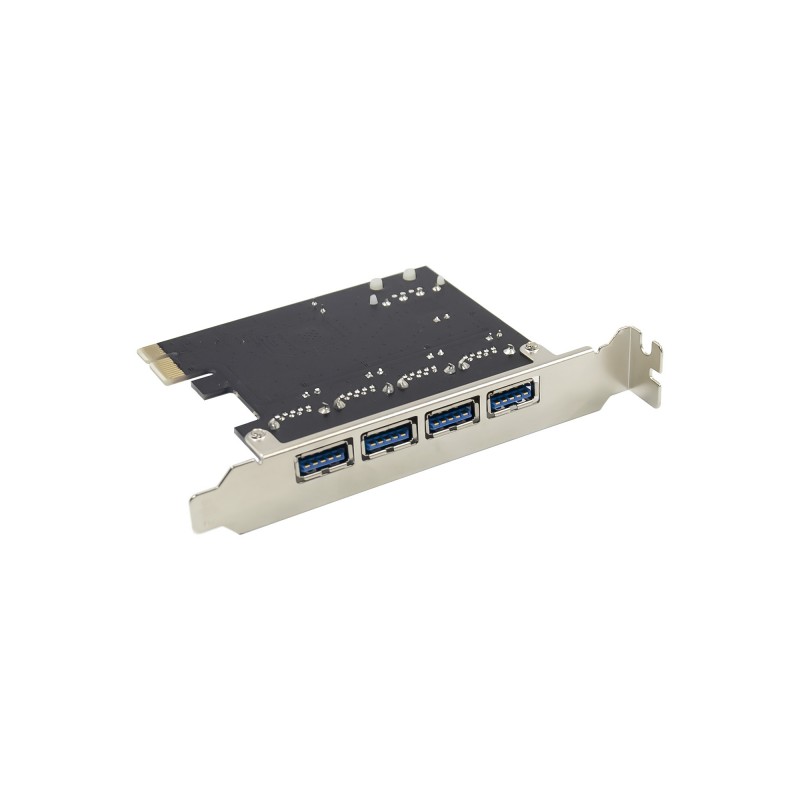

The PX1-U30-4A-201V PCI Express USB 3.0 Card (with 4-pin IDE Power Connector) adds 4 external USB 3.0 ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices.

Features

  • Fully compliant with PCI Express Base Specification Revision 2.0
  • Single-lane (x1) PCI Express throughput rates up to 5 Gbps
  • Compliant with Universal Serial Bus 3.0 specification Revision 1.0
  • Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices  Supports the following speed data rates as follows: Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)
  • External 3x USB3.0 port, Internal 1x USB3.0 port
  • Built-in 4-pin power connector for receiving extra power supply from system
  • Hot-swapping feature allows you to connect/disconnect devices without powering down the system
  • Support Windows® XP/Vista/7 /8/8.1(32/64 bit),linux

Specifications

  • Interface: PCI-Express x1
  • Connectors: 4 x USB3.0 Connectors
  • System Requirements
    • Windows XP, VISTA, 7 .8.8.1and Server 2008 Release 2 /Linux
    • Available PCI-Express X1 slot

Package Contents

  • 1x PCI-Express USB3.0 4 PORTS
  • 1x User Manual
  • 1x Driver CD
