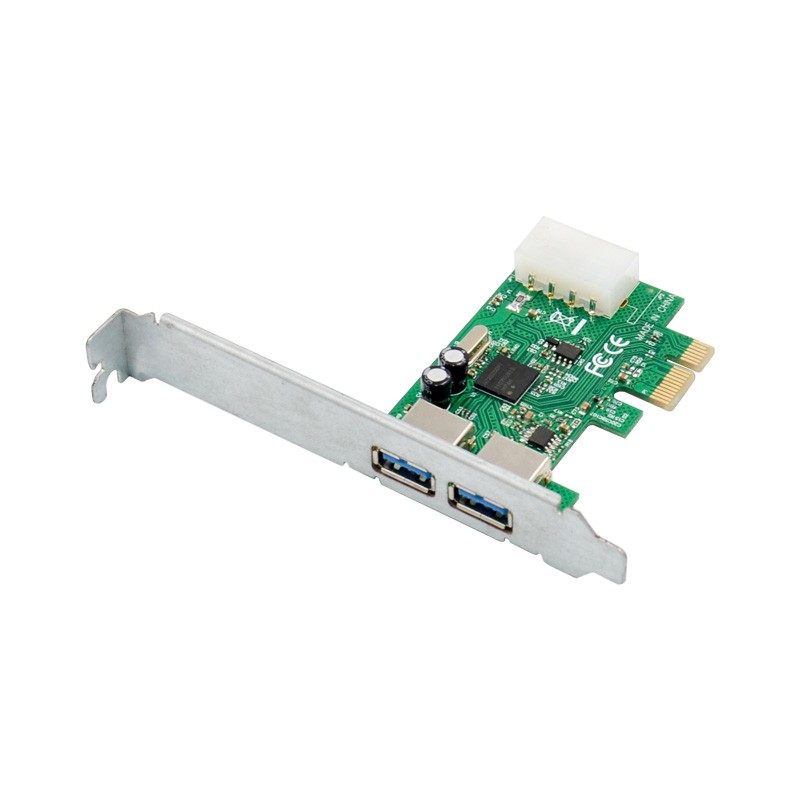

PCIe x1 2-port USB 3.0 Type-A USB Host Card

$6.50

  • Product Code: PX1-U30-2A-0200
  • Availability: In Stock

The PX1-U30-2A-0200 PCIe x1 2-port USB 3.0 Type-A USB Host Card lets you add two USB 3.0 ports to your PCI Express-enabled computer system, with an optional 4-pin IDE power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0).

The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.

Features

  • Quickly adds two USB 3.0 ports through an available PCI Express slot for connecting a variety of external USB devices
  • Supports SuperSpeed USB 3.0 data transfer rates up to 5Gbps providing fast and smooth data transmission
  • Supports UASP (USB Attached SCSI Protocol) and increases data transfer speed with external storage devices especially for SSDs
  • Each port provides power output up to 900mA and features Over-Current protection to further protect your connected devices
  • Installs into standard height and low profile system chassis with the included brackets

Specifications

  • Chipset: NEC 720200
  • Host Bus: PCI Express 2.0 x1
  • Connectors
    • External: 2 x 9-pin USB 3.0 Type A, Female
    • Internal: 1 x 4-pin IDE Power Connector
  • Data transfer rate: Up to 5Gbps
  • USB power output: Up to 900mA
  • Bracket: Standard Profile (LP bracket incl.)
  • OS Compatibility
    • Windows® Vista, 7, 8, 8.1, 10
    • Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019
    • Linux 2.6.31 to 4.11.x LTS versions only
  • Environmental conditions
    • Operating temperature: 32 to 140 degrees F
    • Storage temperature: 14 to 158 degrees F
    • Relative humidity: 5% to 90% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS

Package Contents

  • PCIe USB 3.0 Card
  • Low Profile Bracket
  • Driver CD
  • Instruction Manual
